Solution of MTH601 Assignment No 1 2019 Operations Research Due Date 19-05-2019
Solution of Assignment is Given Below;
Watch the Video to know that how i solve this assignment with step by step guide. If you want to download Solution File in Ms Word File Scroll downl and go to Download Button
Question:

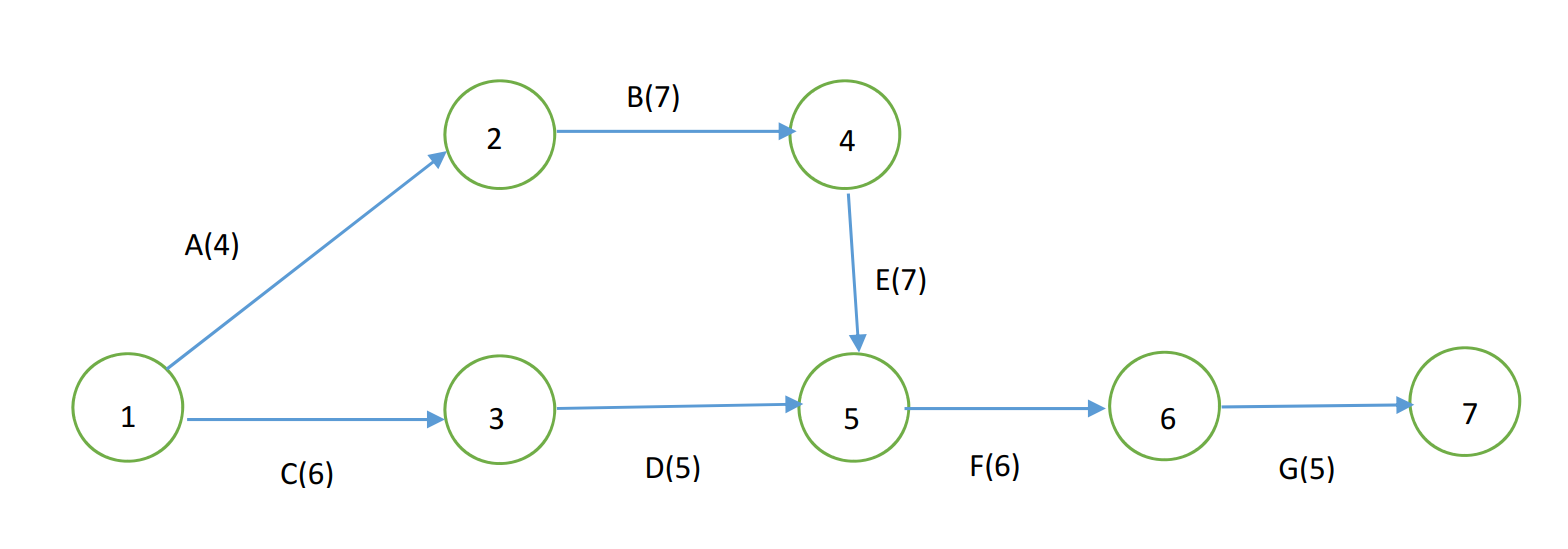

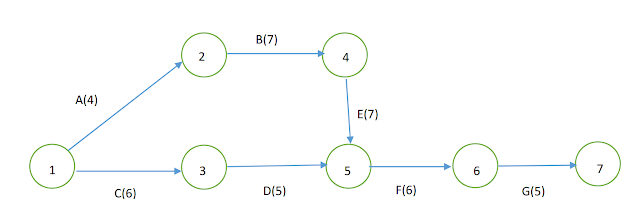

For the given network diagram
1. Construct a table which shows the relationship between the activities and their predecessors.
2. Calculate the following time estimates for each activity.
Earliest Start Time(EST)
Earliest Finish Time (EFT)
Latest Start Time (LST)
Latest Finish Time (LFT)

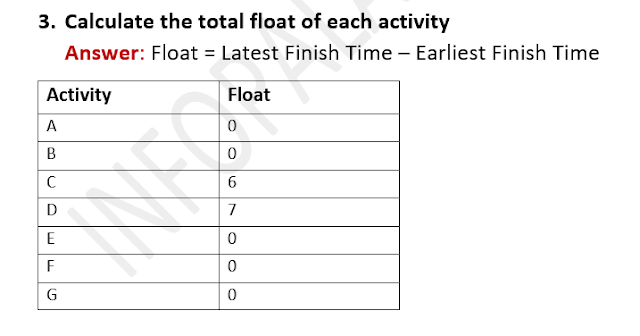

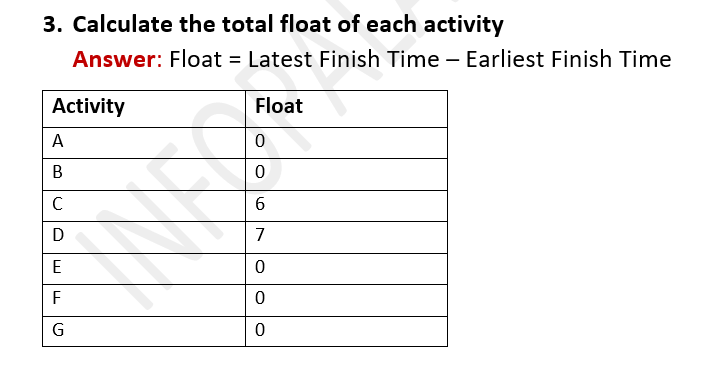

3. Calculate the total float for each activity.
4. Identify the critical path.
5. Find the project completion time.
Note: The duration of each given activity is in days
Download Assignment File by
1. Construct the table which shows the relationship.
| Activities | Predecessor |
|---|---|
| A | - |
| B | A |
| C | - |
| D | C |
| E | B |
| F | D, E |
| G | F |
2. Calculate the following
a. Earliest Start Time
b. Earliest Finish Time
c. Latest Start Time
d. Latest Finish Time
| Activities | Earliest Start Time | Earliest Finish Time | Latest Start Time | Latest Finish Time |
|---|---|---|---|---|
| A | 0 | 4 | 0 | 4 |
| B | 4 | 11 | 4 | 11 |
| C | 0 | 6 | 6 | 12 |
| D | 6 | 11 | 13 | 18 |
| E | 11 | 18 | 11 | 18 |
| F | 18 | 24 | 18 | 24 |
| G | 24 | 29 | 24 | 29 |
4. Critical Path
There are 2 Paths
A+B+E+F+G = 4 +7 + 7 +6+5 = 29
C+D+F+G=6+5+6+5 =22
A+B+E+F+G longest Path hence critical path is 29.
5. Project Completion Time is 29 Days
